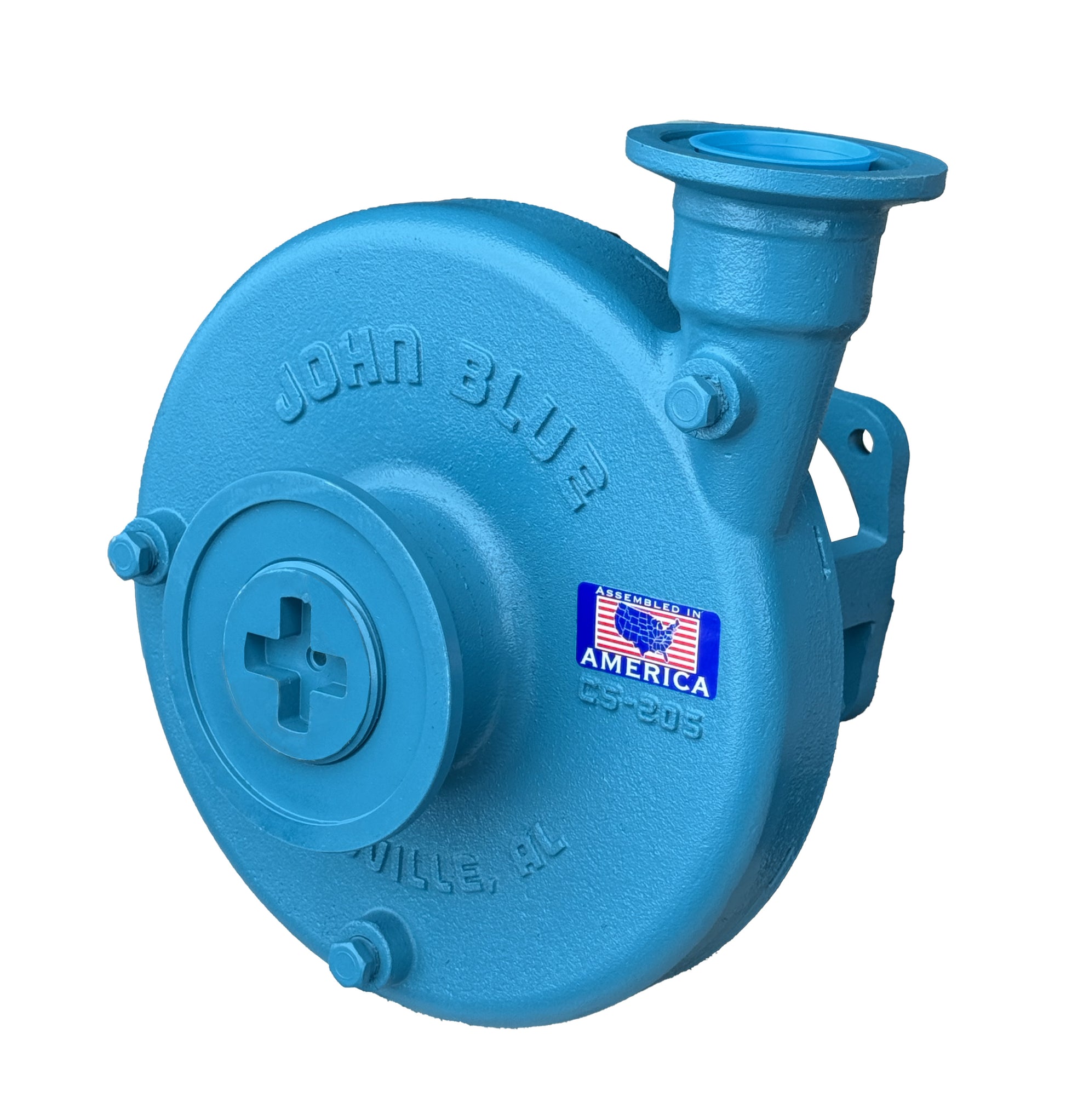

John Blue CS-205RG-CTD Centrifugal Spray Pump with E-Coated Protection

The John Blue CS-205RG-CTD Centrifugal Spray Pump features an E-coated finish that provides superior corrosion resistance, enhanced durability, and longer service life when exposed to harsh chemicals and challenging environmental conditions.

Built from the ground up, the CS-205RG Series delivers the highest flow rates and pressures in the John Blue CS pump lineup. A bearing-mounted impeller shaft improves stability and reliability, helping provide smooth, dependable pump performance in demanding conditions.

The John Blue CS-205RG-CTD pump is fully assembled at the factory and features durable construction, a 1-inch shaft, a maximum flow rate of 145 GPM, and a maximum pressure of 145 PSI. The CS-205RG-CTD includes a 2-inch NPT/M300 flange inlet and a 1-1/2-inch NPT/M220 flange outlet.

• 1" Shaft size
• Required HP: 13 HP for performace specs listed below
• 145 GPM max flow @ 3600 RPM
• 145 PSI max pressure @ 3600 RPM
• Inlet: 2" NPT/M300 flange
• Outlet: 1-½" NPT/M220 flange
• Double Wet Seal Technology
• Vac-U-Seal impeller
• Fits GX390, 14 HP Kohler, and the 14 HP Vanguard Engines
