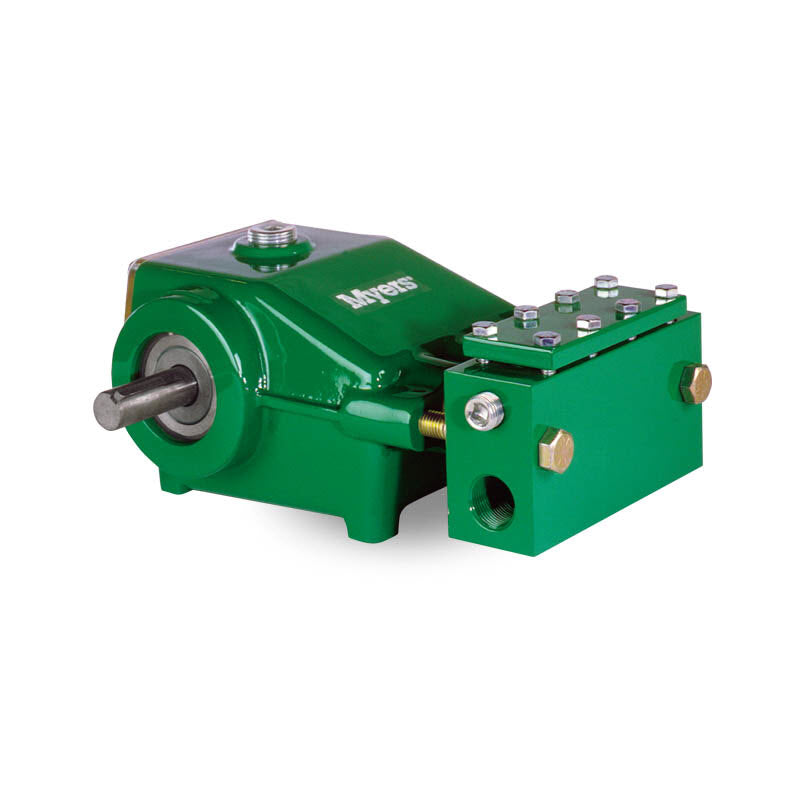

Myers BXM6-15C High Pressure Reciprocating Piston Pump

Myers BXM6-15C High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
120.0 lb
Item #
BXM615C
1 1

Myers BXM6-15C High Pressure Reciprocating Piston Pump

Myers BXM6-15C High Pressure Reciprocating Piston Pump

Brand:
Myers
Weight:
120.0 lb
Item #
BXM615C

$10,764.00
$10,764.00 List Price: $17,910.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 32,292 points with this purchase.

See Details

View full details

Product Overview

Myers BXM6-15C High Pressure Reciprocating Piston Pump

KEY FEATURES
  • Flows to 8 GPM

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Fluid End Body, Steel
    • Ref No: 1
    • Part No: 22829D002
    • Qty Req: 1
    Our price: $1,350.00 List price: $1,500.00
  • O-Ring
    • Ref No: 2
    • Part No: 05876A118
    • Qty Req: 9
    Our price: $5.10 List price: $6.00
  • Valve Cap
    • Ref No: 3
    • Part No: 22830A002
    • Qty Req: 3
    Our price: $45.00 List price: $50.00
  • Spring
    • Ref No: 5
    • Part No: 22832A000
    • Qty Req: 6
    Our price: $55.25 List price: $65.00
  • Valve, Discharge
    • Ref No: 6
    • Part No: 18317A000
    • Qty Req: 6
    Our price: $27.00 List price: $30.00
  • Valve Seal
    • Ref No: 7
    • Part No: 22833A000
    • Qty Req: 6
    Our price: $93.60 List price: $104.00
  • Clamp
    • Ref No: 7A
    • Part No: 26278A000
    • Qty Req: 1
    Our price: $72.00 List price: $80.00
  • Screw
    • Ref No: 7B
    • Part No: 19101A018
    • Qty Req: 8
    Our price: $3.60 List price: $4.00
  • Piston
    • Ref No: 8
    • Part No: 22834A004
    • Qty Req: 3
    Our price: $195.50 List price: $230.00
  • Nylon Gasket
    • Ref No: 9
    • Part No: 05059A424
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Packing "V" Ring
    • Ref No: 10
    • Part No: 18922A005
    • Qty Req: 3
    Our price: $161.50 List price: $190.00
  • Cap Screw
    • Ref No: 11
    • Part No: 06106A019
    • Qty Req: 3
    Our price: $5.10 List price: $6.00
  • Washer
    • Ref No: 12
    • Part No: 05030A225
    • Qty Req: 3
    Our price: $41.65 List price: $49.00
  • Cap Screw
    • Ref No: 13
    • Part No: 19105A018
    • Qty Req: 2
    Our price: $12.60 List price: $14.00
  • Washer, Lock
    • Ref No: 14
    • Part No: 05454A011
    • Qty Req: 2
    Our price: $1.80 List price: $2.00
  • O-Ring
    • Ref No: 15
    • Part No: 05876A116
    • Qty Req: 3
    Our price: $5.10 List price: $6.00
  • Wrist Pin
    • Ref No: 16
    • Part No: 22836A000
    • Qty Req: 3
    Our price: $238.00 List price: $280.00
  • Crosshead & Piston Rod
    • Ref No: 19
    • Part No: 22839B001
    • Qty Req: 3
    Our price: $833.00 List price: $980.00
  • Oil Seal
    • Ref No: 20
    • Part No: 05710A033
    • Qty Req: 6
    Our price: $55.25 List price: $65.00
  • Cylinder Liner
    • Ref No: 21
    • Part No: 22840A001
    • Qty Req: 3
    Our price: $360.00 List price: $400.00
  • Nylon Gasket
    • Ref No: 22
    • Part No: 05059A420
    • Qty Req: 3
    Our price: $11.05 List price: $13.00
  • Fill Plug, Vented
    • Ref No: 23
    • Part No: 17388A000
    • Qty Req: 1
    Our price: $18.00 List price: $20.00
  • Gasket, Rear Cover
    • Ref No: 24
    • Part No: 22841B000
    • Qty Req: 1
    Our price: $12.75 List price: $15.00
  • Rear Cover
    • Ref No: 25
    • Part No: 22842B000
    • Qty Req: 1
    Our price: $45.00 List price: $50.00
  • Reinforcement Plate
    • Ref No: 25A
    • Part No: 23717B000
    • Qty Req: 1
    Our price: $45.00 List price: $50.00
  • Machine Screw
    • Ref No: 26
    • Part No: 05028A008
    • Qty Req: 8
    Our price: $3.60 List price: $4.00
  • Plug, Pipe, 1/4" NPT
    • Ref No: 28
    • Part No: 05022A009
    • Qty Req: 1
    Our price: $16.00 List price: $20.00
  • Crankshaft
    • Ref No: 29
    • Part No: 22843B000
    • Qty Req: 1
    Our price: $2,223.00 List price: $2,470.00
  • Key
    • Ref No: 29A
    • Part No: 05818A003
    • Qty Req: 1
    Our price: $7.20 List price: $8.00
  • Retaining Ring
    • Ref No: 30
    • Part No: 10848A024
    • Qty Req: 2
    Our price: $15.30 List price: $18.00
  • O-Ring
    • Ref No: 31
    • Part No: 05876A117
    • Qty Req: 2
    Our price: $5.10 List price: $6.00
  • Bearing Cap
    • Ref No: 32
    • Part No: 22844A000
    • Qty Req: 1
    Our price: $51.30 List price: $57.00
  • Bearing Cap
    • Ref No: 33
    • Part No: 22844A001
    • Qty Req: 1
    Our price: $105.00 List price: $140.00
  • Ball Bearing
    • Ref No: 34
    • Part No: 08565A024
    • Qty Req: 2
    Our price: $10.35 List price: $11.50
  • Oil Seal
    • Ref No: 35
    • Part No: 05710A002
    • Qty Req: 1
    Our price: $54.90 List price: $61.00
  • Plug, Pipe, 1/2"
    • Ref No: 45
    • Part No: 05022A015
    • Qty Req: 1
    Our price: $5.95 List price: $7.00
  • Plug, Pipe, 1"
    • Ref No: 46
    • Part No: 05022A043
    • Qty Req: 1
    Our price: $11.05 List price: $13.00
