Product Overview

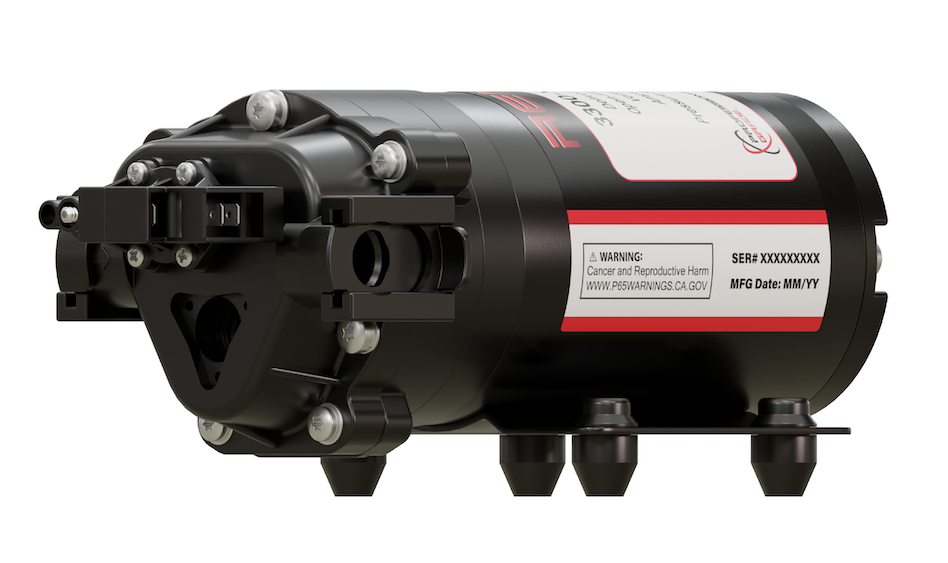

Remco Professional Grade 3300 Series 2.2 GPM, 60 PSI on Demand 12 Volt Sprayer Pump with 3/4" Quick Attach Ports

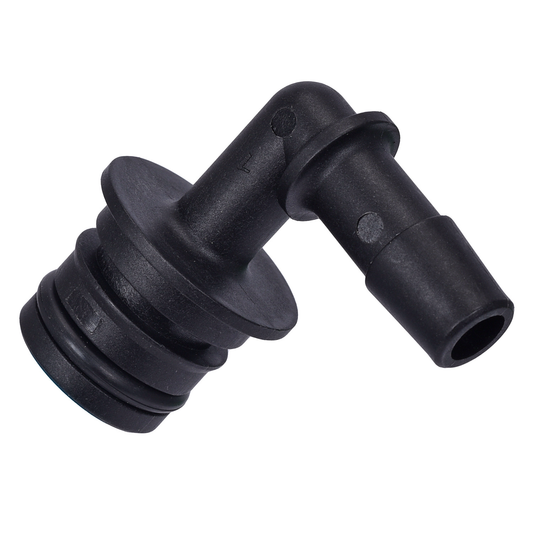

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**
Manufacturer description
Remco's 3300 series 2.2 GPM Sprayer pump is the Professional Grade performance leader. This sprayer pump utilizes a 60 PSI pressure setting and Remco's signature sealed 12 volt electric motor allowing the pump to operate in the harshest environments. The 3300 Series is Made in the U.S.A and engineered with Professional Grade components able to withstand long and continuous duty cycles of agricultural spray applications. Utilizing heavy 14 AWG wire leads the Remco 3300 Series has low operating temperatures is extremely efficient. This 2.2 GPM pump's materials of construction are compatible with most common agricultural spray chemical including herbicides, fertilizers, and insecticides. The Professional Grade 3300 Series Spray pump is perfect for any demanding spraying application.
Features
- Max flow: 2.2 GPM
- Max pressure: 60 PSI
- Port Size: ¾" Quick attach
- Voltage: 12 VDC
- Control: Demand
- Made in the U.S.A.
- Capable of being dry run
- Self priming up to 8' vertically
- 6" length 14 AWG wire leads wit SAE 2- pin connector
- Highest flow rate and lowest operating temperature at spray pressures when compared to other pumps
- Chemically compatible with common Agricultural chemicals like herbicides, fertilizers, and insecticides
- Maximum Shell Temperature of 180° F
- Maximum Liquid Temperature of 140° F
Parts breakdown
Diagram
Parts list
-
-
-
Upper Housing Assembly 3/4" Quick Attach w/ Pressure Switch (3300 Series)Our price: $25.69 List price: $30.22
-
-
-
Complete Pumphead Assembly 2.2GPM 3/4" Quick Attach w/ Pressure SwitchOur price: $47.01 List price: $55.30
-
