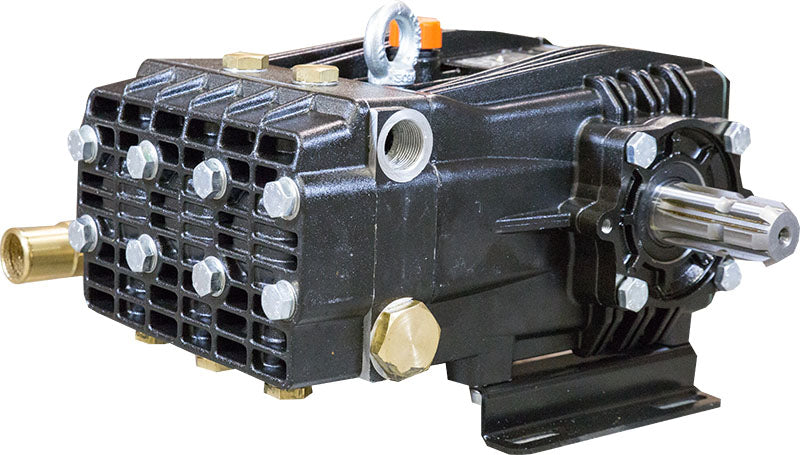

Udor GAMMA-62/CC Plunger Pump

Udor GAMMA-62/CC Plunger Pump

Brand:
Udor
Weight:
52.0 lb
Item #
GAMMA62CC

$1,243.60
$1,243.60 List Price: $2,487.20

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,731 points with this purchase.

See Details

View full details

Product Overview

The Udor GAMMA-62/CC Plunger Pump is useful for agricultural, landscaping and horticulture applications. The CC version comes with dual PTO shafts making it easy to connect to a standard 6 spline female PTO shaft on one end and run an agitator on the other.

Manufacturer description

Three Cylinder Plunger Pump of Anodized Aluminum Construction with Ceramic Plungers and Dual 1-3/8", 6-Spline Male Shaft. Max RPM - 600. On all Thru-Shaft Applications, Shaft Protector #1219.15 is Recommended. Please Order Separately.

Resources

Download Product Manual

Features

  • Max flow: 16 gpm
  • Max pressure: 1000 psi
  • Max speed: 600 rpm
  • Power requirement: 10 hp electric
  • Shaft: Dual 1-3/8" male 6-spline PTO
  • Large Capacity Vented Oil Bath Crank Case
  • Plunger: Solid ceramic
  • Port size: 1-1/4" hose barb inlet
  • Industrial quality tapered roller bearings
  • High strength aluminum alloy connecting rods
  • Replaceable Teflon® coated body guides
  • Recommended control unit: 6005.31
  • Max fluid temperature: 160°F
  • Weight: 50 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Plunger Guide
    • Ref No: 127
    • Part No: 001417
    • Qty Req: 3
    Our price: $70.80 List price: $85.30
  • Seal
    • Ref No: 156
    • Part No: 000702
    • Qty Req: 2
    Our price: $18.27 List price: $22.01
  • Seal
    • Ref No: 169
    • Part No: 000726
    • Qty Req: 3
    Our price: $19.01 List price: $22.90
  • High Pressure V-Packing
    • Ref No: 198
    • Part No: 002109
    • Qty Req: 6
    Our price: $33.12 List price: $39.90
  • Plunger Bolt
    • Ref No: 242
    • Part No: 010213
    • Qty Req: 3
    Our price: $27.39 List price: $33.00
  • Plunger Guide Bushing
    • Ref No: 333
    • Part No: 011506
    • Qty Req: 3
    Our price: $49.97 List price: $60.20
  • Suction Elbow - Brass
    • Ref No: 360
    • Part No: 020291
    • Qty Req: 1
    Our price: $54.45 List price: $65.60
  • Crank Cover
    • Ref No: 549
    • Part No: 020856
    • Qty Req: 1
    Our price: $71.96 List price: $86.70
  • Pump Body
    • Ref No: 639
    • Part No: 020950
    • Qty Req: 1
    Our price: $1,095.10 List price: $1,319.40
  • Crank Bearing
    • Ref No: 700
    • Part No: 021404
    • Qty Req: 2
    Our price: $174.63 List price: $210.40
  • Slinger Ring
    • Ref No: 811
    • Part No: 030149
    • Qty Req: 3
    Our price: $6.72 List price: $8.10
  • Spreader Ring
    • Ref No: 879
    • Part No: 030716
    • Qty Req: 6
    Our price: $5.64 List price: $6.80
  • Bearing Cap
    • Ref No: 933
    • Part No: 0501B6
    • Qty Req: 2
    Our price: $111.55 List price: $134.40
  • Gasket for Udor Gear Reduction
    • Ref No: 977
    • Part No: 060205
    • Qty Req: 2
    Our price: $3.74 List price: $4.50
  • Gasket
    • Ref No: 991
    • Part No: 060251
    • Qty Req: 1
    Our price: $9.71 List price: $11.70
  • Suction Nut - Brass
    • Ref No: 1036
    • Part No: 060413
    • Qty Req: 1
    Our price: $25.40 List price: $30.60
  • Aluminum Gasket
    • Ref No: 1072
    • Part No: 060509
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • O-Ring
    • Ref No: 1366
    • Part No: 110102
    • Qty Req: 1
    Our price: $2.66 List price: $3.20
  • Plunger Bolt O-Ring
    • Ref No: 1370
    • Part No: 110106
    • Qty Req: 3
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1380
    • Part No: 110125
    • Qty Req: 2
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1393
    • Part No: 110146
    • Qty Req: 2
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1395
    • Part No: 110148
    • Qty Req: 2
    Our price: $6.89 List price: $8.30
  • O-Ring
    • Ref No: 1418
    • Part No: 110155
    • Qty Req: 5
    Our price: $2.82 List price: $3.40
  • Mounting Rail
    • Ref No: 1469
    • Part No: 120234
    • Qty Req: 2
    Our price: $21.41 List price: $25.80
  • Connecting Rod
    • Ref No: 1644
    • Part No: 600028
    • Qty Req: 3
    Our price: $104.50 List price: $125.90
  • Connecting Rod Assembly w/Guide
    • Ref No: 1645
    • Part No: 600029
    • Qty Req: 3
    Our price: $220.03 List price: $265.10
  • Valve Assembly
    • Ref No: 1711
    • Part No: 600613
    • Qty Req: 6
    Our price: $42.66 List price: $51.40
  • Seal Kit - Complete w/Brass
    • Ref No: 1831
    • Part No: 603023
    • Qty Req: 3
    Our price: $150.40 List price: $181.20
  • Washer
    • Ref No: 1844
    • Part No: 140309
    • Qty Req: 2
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 1845
    • Part No: 140310
    • Qty Req: 2
    Our price: $0.94 List price: $1.13
  • Washer
    • Ref No: 1885
    • Part No: 141102
    • Qty Req: 6
    Our price: $2.24 List price: $2.70
  • Wrist Pin
    • Ref No: 1970
    • Part No: 150212
    • Qty Req: 3
    Our price: $16.68 List price: $20.10
  • Inlet Adapter
    • Ref No: 2011
    • Part No: 150402
    • Qty Req: 1
    Our price: $54.37 List price: $65.50
  • Snap Ring
    • Ref No: 2049
    • Part No: 150611
    • Qty Req: 6
    Our price: $1.91 List price: $2.30
  • Oil Plug
    • Ref No: 2251
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Oil Cap - Vented
    • Ref No: 2263
    • Part No: 1603B2
    • Qty Req: 1
    Our price: $12.78 List price: $15.40
  • Plug - Inlet
    • Ref No: 2266
    • Part No: 160330
    • Qty Req: 1
    Our price: $31.04 List price: $37.40
  • Oil Sight Glass
    • Ref No: 2269
    • Part No: 160333
    • Qty Req: 1
    Our price: $13.61 List price: $16.40
  • Plug - Discharge
    • Ref No: 2272
    • Part No: 160340
    • Qty Req: 1
    Our price: $6.50 List price: $7.83
  • Plug
    • Ref No: 2280
    • Part No: 160351
    • Qty Req: 5
    Our price: $8.47 List price: $10.20
  • Head - Front
    • Ref No: 2330
    • Part No: 160485
    • Qty Req: 1
    Our price: $156.46 List price: $188.50
  • Head - Inner
    • Ref No: 2331
    • Part No: 160486
    • Qty Req: 1
    Our price: $246.76 List price: $297.30
  • Bolt
    • Ref No: 2465
    • Part No: 180407
    • Qty Req: 1
    Our price: $2.32 List price: $2.80
  • Head Bolt (Hex Head)
    • Ref No: 2494
    • Part No: 180412
    • Qty Req: 8
    Our price: $4.90 List price: $5.90
  • Bolt
    • Ref No: 2582
    • Part No: 180504
    • Qty Req: 8
    Our price: $2.49 List price: $3.00
  • Bolt
    • Ref No: 2583
    • Part No: 180505
    • Qty Req: 8
    Our price: $2.49 List price: $3.00
  • Bolt
    • Ref No: 2587
    • Part No: 180520
    • Qty Req: 12
    Our price: $2.32 List price: $2.80
  • Bolt
    • Ref No: 2596
    • Part No: 180523
    • Qty Req: 6
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 4794
    • Part No: 1101E2
    • Qty Req: 6
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 4796
    • Part No: 110197
    • Qty Req: 3
    Our price: $6.72 List price: $8.10
  • O-Ring
    • Ref No: 4797
    • Part No: 110198
    • Qty Req: 3
    Our price: $5.31 List price: $6.40
  • PTO Safety Shield (Optional)
    • Ref No: 7650
    • Part No: 121902
    • Qty Req: 1
    Our price: $41.83 List price: $50.40
  • Thru-Shaft Protector (Optional)
    • Ref No: 7653
    • Part No: 121915
    • Qty Req: 1
    Our price: $17.76 List price: $21.40
  • Crankshaft
    • Ref No: 9252
    • Part No: 000281
    • Qty Req: 1
    Our price: $769.08 List price: $926.60
