Udor KAPPA-75/GR Diaphragm Pump

Udor KAPPA-75/GR Diaphragm Pump

Brand:
Udor
Weight:
63.0 lb
Item #
KAPPA75GR
2 reviews
Skip to product information
1 of 1

Udor KAPPA-75/GR Diaphragm Pump

Udor KAPPA-75/GR Diaphragm Pump

Brand:
Udor
Weight:
63.0 lb
Item #
KAPPA75GR
2 reviews

Regular price $1,779.86
Sale price $1,779.86 Regular price List Price: $3,236.10

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 5,340 points with this purchase.

View full details

Collapsible content

Product Overview

A diaphragm pump with gear reduction included makes it easy to swap out the pump on your gas engine. The KAPPA-75/GR from Udor allows you to control the horsepower of the motor, varying between 9 and 13 HP. This offers a variance in output rate and pressure, providing better spray coverage in areas of all sizes. This pump is chemically treated and built to last even in the most grueling conditions.

Manufacturer description

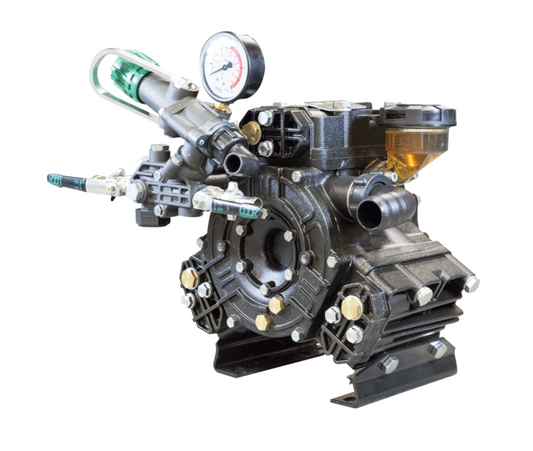

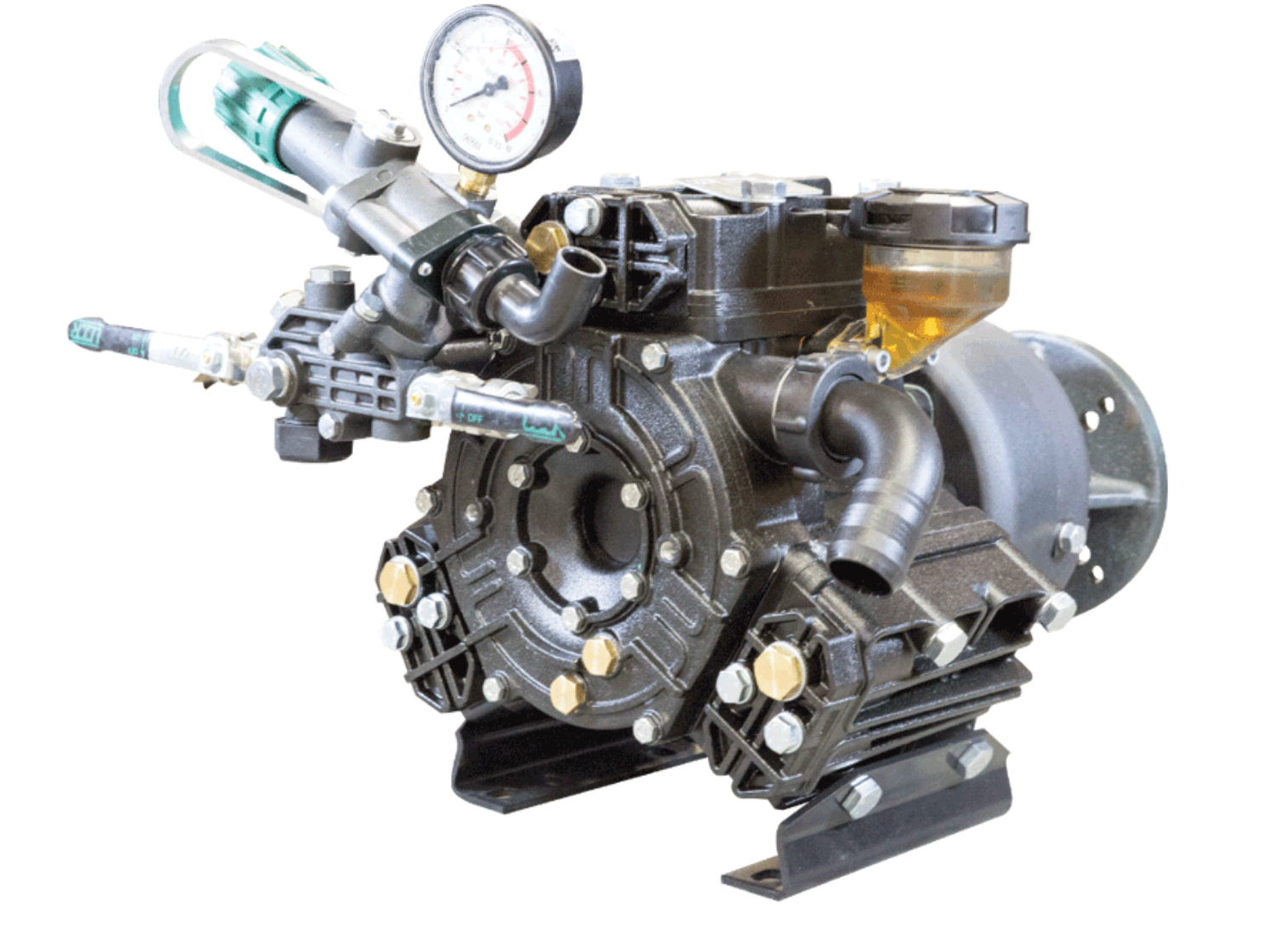

Three diaphragm pump with universal drive face, pulsation dampener & control unit with adjustable pressure regulator, manual dump lever, dual ball valve outlets & pressure gauge. KAPPA-75 pump with gear reduction for 9-13 HP gasoline engines with 1" shafts. KAPPA-75 medium pressure diaphragm pumps are excellent for various horticultural, agricultural, lawn care, nursery and turf spraying applications. They are also effectively utilized in other applications such as hydrostatic testing, fire fighting and cleaning. KAPPA-75 pumps are constructed of anodized aluminum with anodized aluminum and stainless steel liquid handling parts. Built-in pulsation dampener, control valve and pressure gauge are standard on all models. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features

  • Max flow: 20 gpm
  • Max pressure: 560 psi

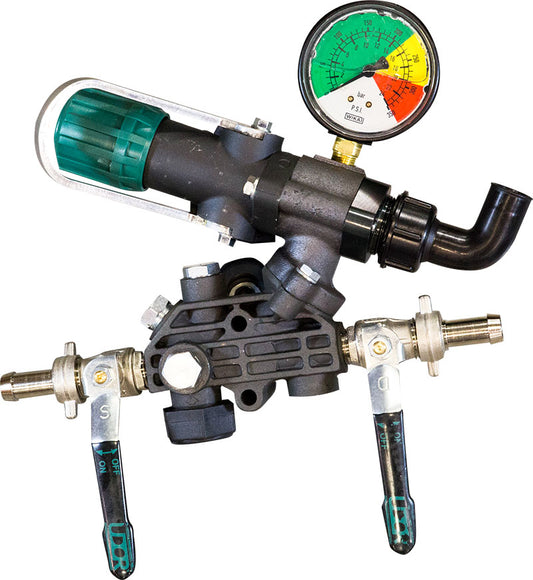

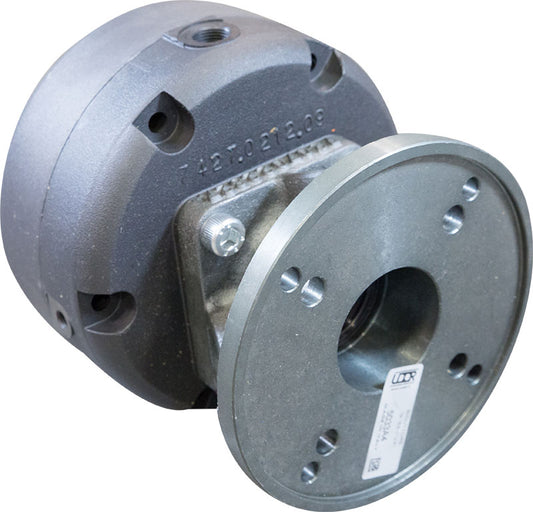

  • Includes 6047.06 control unit and 5033.A4 gearbox with 1" hollow shaft for mounting on 9 to 13 hp engines
  • Port sizes: 1-1/4" HB inlet, (2) 1/2" HB outlet, 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F
  • Weight: 58 lbs
  • Pump recently replaced by DELTA-75

Parts breakdown

Diagram

Diagram parts

Parts list

  • Retainer Ring
    • Ref No: 5
    • Part No: 000107
    • Qty Req: 2
    Our price: $53.37 List price: $64.30
  • Crankshaft (KAPPA-100, KAPPA-75)
    • Ref No: 67
    • Part No: 000256
    • Qty Req: 1
    Our price: $419.23 List price: $505.10
  • Seal
    • Ref No: 169
    • Part No: 000726
    • Qty Req: 1
    Our price: $19.01 List price: $22.90
  • SEAL
    • Ref No: 170
    • Part No: 000727
    • Qty Req: 1
    Our price: $28.97 List price: $34.90
  • Diaphragm Bolt (KAPPA-30/33/40/43/55/75/100)
    • Ref No: 240
    • Part No: 0010204
    • Qty Req: 3
    Our price: $21.66 List price: $26.10
  • Suction Elbow (KAPPA-55/75, RO-70)
    • Ref No: 365
    • Part No: 020252
    • Qty Req: 1
    Our price: $19.51 List price: $23.50
  • Piston Sleeve (KAPPA-75/100)
    • Ref No: 497
    • Part No: 020624
    • Qty Req: 3
    Our price: $138.44 List price: $166.80
  • Oil Cap **Obsolete - no longer available. Must buy 603301 complete assembly**
    • Ref No: 540
    • Part No: 020898
    • Qty Req: 1
    Our price: $16.52 List price: $19.90
  • Accumulator Head
    • Ref No: 567
    • Part No: 020834
    • Qty Req: 1
    Our price: $90.39 List price: $108.90
  • Pump Body (Standard)
    • Ref No: 622
    • Part No: 020929
    • Qty Req: 1
    Our price: $653.04 List price: $786.80
  • Pump Body (Throughshaft)
    • Ref No: 623
    • Part No: 020930
    • Qty Req: 1
    Our price: $653.96 List price: $787.90
  • Ball Bearing (KAPPA-30/40/55/75/100, RO-70)
    • Ref No: 698
    • Part No: 021401
    • Qty Req: 1
    Our price: $231.32 List price: $278.70
  • Bearing
    • Ref No: 701
    • Part No: 021405
    • Qty Req: 1
    Our price: $127.07 List price: $153.10
  • Retainer Washer (KAPPA-30/40/55/75/100)
    • Ref No: 794
    • Part No: 030114
    • Qty Req: 3
    Our price: $13.20 List price: $15.90
  • Washer (KAPPA-75/100)
    • Ref No: 804
    • Part No: 030132
    • Qty Req: 2
    Our price: $14.86 List price: $17.90
  • Washer (KAPPA-75/100)
    • Ref No: 832
    • Part No: 030251
    • Qty Req: 2
    Our price: $14.86 List price: $17.90
  • Manifold Cover (KAPPA-75)
    • Ref No: 922
    • Part No: 050168
    • Qty Req: 1
    Our price: $65.90 List price: $79.40
  • Flange (KAPPA-75/100)
    • Ref No: 924
    • Part No: 050169
    • Qty Req: 1
    Our price: $111.05 List price: $133.80
  • Flange (KAPPA-75/100)
    • Ref No: 925
    • Part No: 050170
    • Qty Req: 1
    Our price: $167.33 List price: $201.60
  • Gasket for Udor Gear Reduction
    • Ref No: 977
    • Part No: 060205
    • Qty Req: 1
    Our price: $3.74 List price: $4.50
  • Suction Nut
    • Ref No: 1038
    • Part No: 060418
    • Qty Req: 1
    Our price: $13.20 List price: $15.90
  • Aluminum Gasket
    • Ref No: 1072
    • Part No: 060509
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • Gasket
    • Ref No: 1075
    • Part No: 060543
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • Air Valve Assembly
    • Ref No: 1126
    • Part No: 060816
    • Qty Req: 1
    Our price: $20.50 List price: $24.70
  • Piston Diaphragm Buna-N (Opt.)
    • Ref No: 1299
    • Part No: 090313
    • Qty Req: 3
    Our price: $29.05 List price: $35.00
  • Accumulator Diaphragm
    • Ref No: 1300
    • Part No: 090314
    • Qty Req: 1
    Our price: $27.89 List price: $33.60
  • O-Ring
    • Ref No: 1376
    • Part No: 110116
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1381
    • Part No: 110127
    • Qty Req: 6
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1382
    • Part No: 110129
    • Qty Req: 8
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1389
    • Part No: 110141
    • Qty Req: 1
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1395
    • Part No: 110148
    • Qty Req: 1
    Our price: $6.89 List price: $8.30
  • O-Ring
    • Ref No: 1407
    • Part No: 110162
    • Qty Req: 1
    Our price: $6.06 List price: $7.30
  • O-Ring
    • Ref No: 1408
    • Part No: 110163
    • Qty Req: 1
    Our price: $12.45 List price: $15.00
  • O-Ring
    • Ref No: 1434
    • Part No: 1101D1
    • Qty Req: 1
    Our price: $5.81 List price: $7.00
  • Piston
    • Ref No: 1578
    • Part No: 120518
    • Qty Req: 3
    Our price: $104.75 List price: $126.20
  • Valve Assembly for Udor Diaphragm Pumps
    • Ref No: 1702
    • Part No: 600601
    • Qty Req: 6
    Our price: $29.63 List price: $35.70
  • Head Assembly
    • Ref No: 1721
    • Part No: 601706
    • Qty Req: 3
    Our price: $132.05 List price: $159.10
  • Oil Reservoir Assembly
    • Ref No: 1740
    • Part No: 603301
    • Qty Req: 1
    Our price: $68.23 List price: $82.20
  • Piston/Rod Assembly
    • Ref No: 1796
    • Part No: 601522
    • Qty Req: 3
    Our price: $183.18 List price: $220.70
  • Washer
    • Ref No: 1843
    • Part No: 140307
    • Qty Req: 2
    Our price: $1.33 List price: $1.60
  • Connecting Rod Pin
    • Ref No: 1967
    • Part No: 150207
    • Qty Req: 3
    Our price: $26.31 List price: $31.70
  • Snap Ring
    • Ref No: 2051
    • Part No: 150615
    • Qty Req: 6
    Our price: $1.91 List price: $2.30
  • Connecting Rod
    • Ref No: 2148
    • Part No: 151915
    • Qty Req: 3
    Our price: $70.38 List price: $84.80
  • Head Plug
    • Ref No: 2268
    • Part No: 160332
    • Qty Req: 7
    Our price: $7.89 List price: $9.50
  • Plug
    • Ref No: 2273
    • Part No: 160367
    • Qty Req: 1
    Our price: $8.55 List price: $10.30
  • Bolt
    • Ref No: 2580
    • Part No: 180501
    • Qty Req: 4
    Our price: $2.57 List price: $3.10
  • Bolt
    • Ref No: 2588
    • Part No: 180521
    • Qty Req: 9
    Our price: $2.32 List price: $2.80
  • Bolt
    • Ref No: 2594
    • Part No: 180524
    • Qty Req: 6
    Our price: $1.99 List price: $2.40
  • Bolt
    • Ref No: 2589
    • Part No: 180531
    • Qty Req: 2
    Our price: $1.91 List price: $2.30
  • Head Bolt (Allen Head-Old Style)
    • Ref No: 2602
    • Part No: 180525
    • Qty Req: 19
    Our price: $3.07 List price: $3.70
  • Washer
    • Ref No: 7671
    • Part No: 140309
    • Qty Req: 15
    Our price: $1.33 List price: $1.60
  • Head Bolt (Hex Head - New Style)
    • Ref No: 7948
    • Part No: 180445
    • Qty Req: 19
    Our price: $4.32 List price: $5.20
  • Piston Diaphragm Desmopan (Std.)
    • Ref No: 8117
    • Part No: 090338
    • Qty Req: 3
    Our price: $50.22 List price: $60.50
  • Mounting Rail - Right Side
    • Ref No: 8151
    • Part No: 120263
    • Qty Req: 1
    Our price: $55.44 List price: $66.80
  • Mounting Rail - Left Side
    • Ref No: 8152
    • Part No: 120264
    • Qty Req: 1
    Our price: $55.44 List price: $66.80
