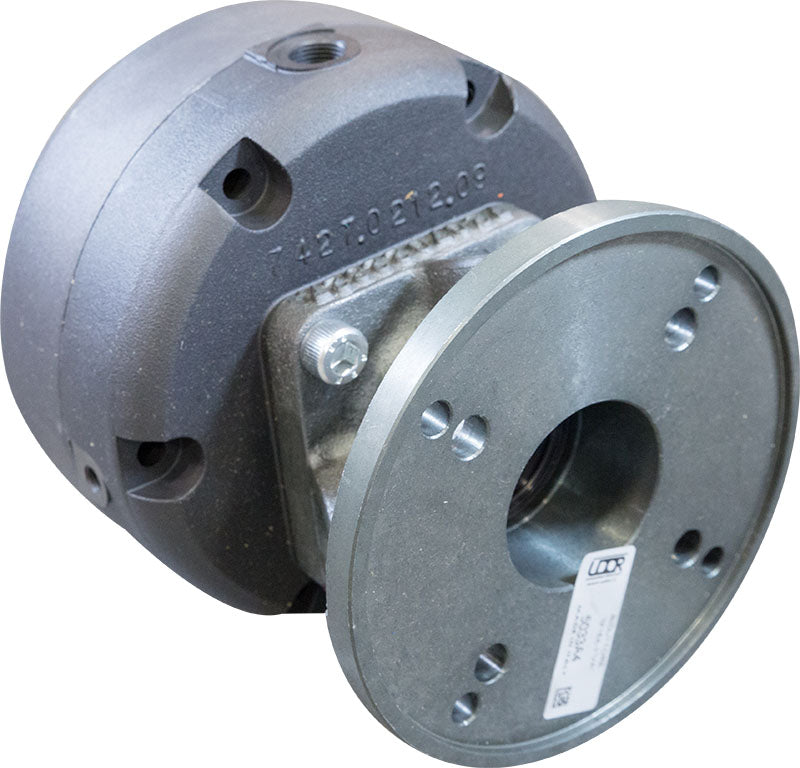

5033.A4 Udor Gearbox 1" Shaft

5033.A4 Udor Gearbox 1" Shaft

Brand:
Udor
Weight:
11.0 lb
Item #
5033A4
Skip to product information
1 of 1

5033.A4 Udor Gearbox 1" Shaft

5033.A4 Udor Gearbox 1" Shaft

Brand:
Udor
Weight:
11.0 lb
Item #
5033A4

Regular price $565.50
Sale price $565.50 Regular price List Price: $870.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,697 points with this purchase.

View full details

Collapsible content

Product Overview

Use Udor's 5033.A4 Gearbox to attach diaphragm pumps to a gas engine with a one-inch shaft. This item can be used for 8 hp, 9 hp, 11 hp and 13 hp engines. In general, engine brands that can be used with this gearbox include Briggs and Stratton, Vanguard, Honda and Kohler Command. This gearbox is bearing supported and vented, providing a longer life and cooler operations.

Manufacturer description

All UDOR gear reductions are black anodized, bearing supported and vented for long life and cooler operation. 6:1 gearbox with 1" hollow shaft for mounting on 8 to 13 hp gas engines. For pump models KAPPA-55/75, RO-70/110

Features

  • Fits pump models: KAPPA-55/75, RO-70/110, ZETA-120
  • Gear ratio: 6 to 1
  • Engine Size: 8 to 13 hp with 1" solid keyed shaft
  • Weight: 11 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Gear Shaft 1" (5033A4 Gearbox for KAPPA-55/75, RO-70/106/110)
    • Ref No: 115
    • Part No: 000421
    • Qty Req: 1
    Our price: $265.93 List price: $320.40
  • Bearing (5033.A4)
    • Ref No: 132
    • Part No: 000601
    • Qty Req: 2
    Our price: $51.54 List price: $62.10
  • Bearing (5033.A4 Gear Box)
    • Ref No: 140
    • Part No: 000611
    • Qty Req: 1
    Our price: $74.29 List price: $89.50
  • UDOR GEAR
    • Ref No: 150
    • Part No: 001901
    • Qty Req: 1
    Our price: $287.68 List price: $346.60
  • Seal (5033A4 1" Shaft Gear Box)
    • Ref No: 171
    • Part No: 000733
    • Qty Req: 1
    Our price: $23.74 List price: $28.60
  • Gear Case Half (Udor 1" Shaft Gearbox- 5033A4)
    • Ref No: 659
    • Part No: 021209
    • Qty Req: 1
    Our price: $293.41 List price: $353.50
  • Pump Gear (1" Shaft Gearbox- 5033.A4)
    • Ref No: 682
    • Part No: 021323
    • Qty Req: 1
    Our price: $270.25 List price: $325.60
  • CASE FLANGE
    • Ref No: 766
    • Part No: 022827
    • Qty Req: 1
    Our price: $228.25 List price: $275.00
  • Gasket for Udor Gear Reduction
    • Ref No: 977
    • Part No: 060205
    • Qty Req: 1
    Our price: $3.74 List price: $4.50
  • Gasket
    • Ref No: 989
    • Part No: 060236
    • Qty Req: 1
    Our price: $7.80 List price: $9.40
  • Aluminum Gasket
    • Ref No: 1072
    • Part No: 060509
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • O-Ring
    • Ref No: 1373
    • Part No: 110111
    • Qty Req: 1
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: 1388
    • Part No: 110136
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • Washer
    • Ref No: 1845
    • Part No: 140310
    • Qty Req: 4
    Our price: $0.94 List price: $1.13
  • Washer
    • Ref No: 1847
    • Part No: 140312
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • Thrust Washer
    • Ref No: 1900
    • Part No: 141301
    • Qty Req: 2
    Our price: $2.24 List price: $2.70
  • Gear Case Half
    • Ref No: 2033
    • Part No: 150528
    • Qty Req: 1
    Our price: $360.22 List price: $434.00
  • Oil Plug
    • Ref No: 2251
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Vent Cap
    • Ref No: 2288
    • Part No: 160381
    • Qty Req: 1
    Our price: $9.21 List price: $11.10
  • Bolt
    • Ref No: 2580
    • Part No: 180501
    • Qty Req: 4
    Our price: $2.57 List price: $3.10
  • Bolt
    • Ref No: 2600
    • Part No: 180533
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • Bolt
    • Ref No: 2601
    • Part No: 180536
    • Qty Req: 6
    Our price: $2.32 List price: $2.80
  • Bolt - 5/16" X 1"
    • Ref No: 2622
    • Part No: 180707
    • Qty Req: 4
    Our price: $2.41 List price: $2.90
  • Bolt
    • Ref No: 2624
    • Part No: 180709
    • Qty Req: 1
    Our price: $4.73 List price: $5.70
  • Bolt
    • Ref No: 2625
    • Part No: 180710
    • Qty Req: 1
    Our price: $28.97 List price: $34.90
  • Side Plug
    • Ref No: 5950
    • Part No: 180477
    • Qty Req: 1
    Our price: $1.99 List price: $2.40
  • Guide Pin
    • Ref No: 5678
    • Part No: 151208
    • Qty Req: 1
    Our price: $3.07 List price: $3.70
