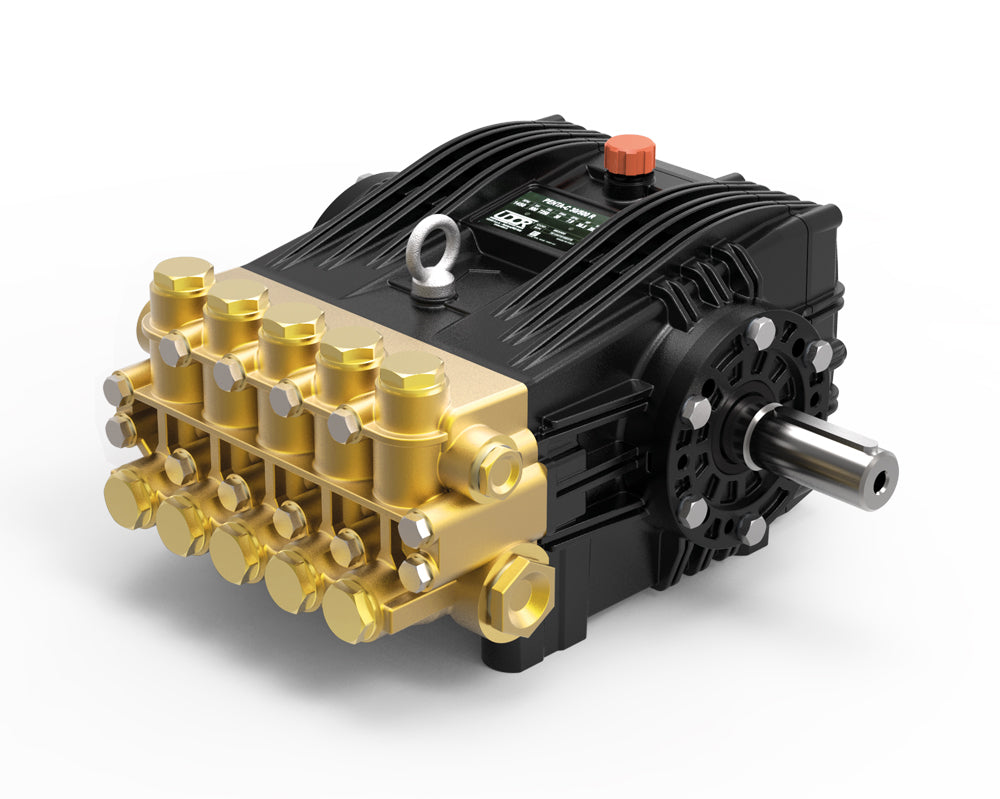

Udor PENTA-D 70/280 5-Cylinder Industrial Plunger Pump

Udor PENTA-D 70/280 5-Cylinder Industrial Plunger Pump

Brand:
Udor
Weight:
110.0 lb
Item #
PENTAD70280
1 1

Udor PENTA-D 70/280 5-Cylinder Industrial Plunger Pump

Udor PENTA-D 70/280 5-Cylinder Industrial Plunger Pump

Brand:
Udor
Weight:
110.0 lb
Item #
PENTAD70280

$5,084.05
$5,084.05 List Price: $10,168.10

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 15,252 points with this purchase.

See Details

View full details

Product Overview

Udor PENTA-D 70/280 5-Cylinder Industrial Plunger Pump

18 gpm, 4000 psi, 50 HP Electric Power Requirement

1750 RPM, 35MM Solid Keyed Shaft. 1-1/4" FNPT Inlet, 3/4" FNPT Outlet.

Features:

-•Heavy Duty Brass Manifold

-•Heavy Duty Brass Manifold

-•Stainless Steel Check Valves

-•Stainless Steel Plunger Rods

-•Heavy Duty Bronze Connecting Rods with Guide Pins for Perfect Cap Alignment

-•Dual Roller Bearings

-•Solid Ceramic Plungers

-•Heat Treated Crankshaft

-•Max. Fluid Temp. 160°F

-•80 oz. Crank Case Oil Capacity

-•Heavy Duty, Flat Base High Pressure Seals

-•15" L x 16.5" W x 9" H

-•Replaceable PTFE Coated Body Guides

-•All Penta Pumps Include Lift Ring and Dust Cover to Protect Oil Seals

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Seal
    • Ref No: sku:000743
    • Part No: 000743
    • Qty Req: 5
    Our price: $16.35 List price: $19.70
  • Seal
    • Ref No: sku:000757
    • Part No: 000757
    • Qty Req: 1
    Our price: $18.26 List price: $22.00
  • Plunger Rod
    • Ref No: sku:001419
    • Part No: 001419
    • Qty Req: 5
    Our price: $50.46 List price: $60.80
  • Support Ring
    • Ref No: sku:002323
    • Part No: 002323
    • Qty Req: 5
    Our price: $2.32 List price: $2.80
  • Back Up Ring
    • Ref No: sku:002907
    • Part No: 002907
    • Qty Req: 10
    Our price: $9.55 List price: $11.50
  • Rod Guide
    • Ref No: sku:011508
    • Part No: 011508
    • Qty Req: 5
    Our price: $20.34 List price: $24.50
  • Back Cover
    • Ref No: sku:020895
    • Part No: 020895
    • Qty Req: 1
    Our price: $176.62 List price: $212.80
  • Crankcase, Penta
    • Ref No: sku:020984
    • Part No: 020984
    • Qty Req: 1
    Our price: $1,409.59 List price: $1,698.30
  • Bearing
    • Ref No: sku:021613
    • Part No: 021613
    • Qty Req: 2
    Our price: $296.31 List price: $357.00
  • Plug, Plastic
    • Ref No: sku:021805
    • Part No: 021805
    • Qty Req: 1
    Our price: $6.72 List price: $8.10
  • Slinger Ring
    • Ref No: sku:030141
    • Part No: 030141
    • Qty Req: 5
    Our price: $2.32 List price: $2.80
  • Bearing Cap
    • Ref No: sku:0501F8
    • Part No: 0501F8
    • Qty Req: 2
    Our price: $115.95 List price: $139.70
  • Gasket
    • Ref No: sku:060234
    • Part No: 060234
    • Qty Req: 1
    Our price: $23.24 List price: $28.00
  • Gasket
    • Ref No: sku:060542
    • Part No: 060542
    • Qty Req: 1
    Our price: $2.41 List price: $2.90
  • Gasket
    • Ref No: sku:060543
    • Part No: 060543
    • Qty Req: 2
    Our price: $2.82 List price: $3.40
  • Aluminum Washer
    • Ref No: sku:060552
    • Part No: 060552
    • Qty Req: 1
    Our price: $8.80 List price: $10.60
  • Key
    • Ref No: sku:080123
    • Part No: 080123
    • Qty Req: 1
    Our price: $11.79 List price: $14.20
  • O-Ring
    • Ref No: sku:110148
    • Part No: 110148
    • Qty Req: 2
    Our price: $6.89 List price: $8.30
  • O-Ring
    • Ref No: sku:110164
    • Part No: 110164
    • Qty Req: 10
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: sku:1101A8
    • Part No: 1101A8
    • Qty Req: 5
    Our price: $2.24 List price: $2.70
  • O-Ring
    • Ref No: sku:1101A9
    • Part No: 1101A9
    • Qty Req: 5
    Our price: $2.49 List price: $3.00
  • O-Ring
    • Ref No: sku:1101D9
    • Part No: 1101D9
    • Qty Req: 10
    Our price: $4.90 List price: $5.90
  • Plunger
    • Ref No: sku:120533
    • Part No: 120533
    • Qty Req: 5
    Our price: $85.82 List price: $103.40
  • Lift Ring
    • Ref No: sku:1240R9
    • Part No: 1240R9
    • Qty Req: 1
    Our price: $13.61 List price: $16.40
  • Plunger Washer
    • Ref No: sku:140333
    • Part No: 140333
    • Qty Req: 5
    Our price: $3.74 List price: $4.50
  • Lock Washer
    • Ref No: sku:141103
    • Part No: 141103
    • Qty Req: 20
    Our price: $1.91 List price: $2.30
  • Connecting Rod
    • Ref No: sku:150214
    • Part No: 150214
    • Qty Req: 5
    Our price: $4.90 List price: $5.90
  • Snap Ring
    • Ref No: sku:150621
    • Part No: 150621
    • Qty Req: 2
    Our price: $5.81 List price: $7.00
  • Oil Plug
    • Ref No: sku:160302
    • Part No: 160302
    • Qty Req: 2
    Our price: $8.47 List price: $10.20
  • Manifold Plug
    • Ref No: sku:160374
    • Part No: 160374
    • Qty Req: 1
    Our price: $13.70 List price: $16.50
  • Oil Sight Gauge
    • Ref No: sku:1603B8
    • Part No: 1603B8
    • Qty Req: 1
    Our price: $16.85 List price: $20.30
  • Valve Cap
    • Ref No: sku:1603D2
    • Part No: 1603D2
    • Qty Req: 10
    Our price: $44.65 List price: $53.80
  • Inlet Plug
    • Ref No: sku:1603D3
    • Part No: 1603D3
    • Qty Req: 1
    Our price: $59.68 List price: $71.90
  • Vented Plug
    • Ref No: sku:162506
    • Part No: 162506
    • Qty Req: 1
    Our price: $14.86 List price: $17.90
  • Bolt
    • Ref No: sku:180403
    • Part No: 180403
    • Qty Req: 8
    Our price: $2.32 List price: $2.80
  • Head Bolt (Hex Head)
    • Ref No: sku:180412
    • Part No: 180412
    • Qty Req: 12
    Our price: $4.90 List price: $5.90
  • Bolt
    • Ref No: sku:180519
    • Part No: 180519
    • Qty Req: 10
    Our price: $2.24 List price: $2.70
  • Screw
    • Ref No: sku:180809
    • Part No: 180809
    • Qty Req: 2
    Our price: $2.49 List price: $3.00
  • Bronze Connecting Rod
    • Ref No: sku:600080
    • Part No: 600080
    • Qty Req: 5
    Our price: $270.58 List price: $326.00
