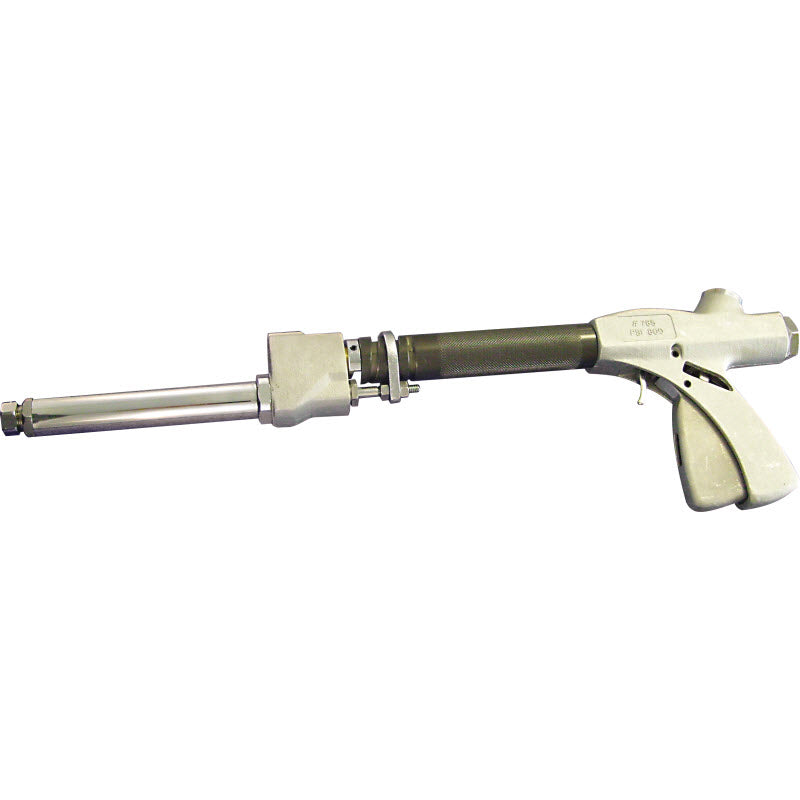

FMC John Bean Model 785 Spray Gun

FMC John Bean Model 785 Spray Gun

Brand:
FMC/John Bean
Weight:
7.0 lb
Item #
5253228
4 reviews
Skip to product information
1 of 1

FMC John Bean Model 785 Spray Gun

FMC John Bean Model 785 Spray Gun

Brand:
FMC/John Bean
Weight:
7.0 lb
Item #
5253228
4 reviews

Regular price $499.25
Sale price $499.25 Regular price List Price: $579.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,498 points with this purchase.

View full details

Collapsible content

Product Overview

For deploying liquids in agricultural and landscaping applications, choose this FMC John Bean Model 785 Spray Gun. This heavy-duty product is capable of withstanding pressures up to 800 PSI and flow rates of up to 48 GPM. Perfect for tall tree delivery, it comes with adjustable settings, you can deploy anything from a fine spray mist to a solid stream with a simple turn of the wrist.

Manufacturer description

FMC John Bean Model 785 Spray Gun. Sprays up to 48 gpm and 800 psi. The pattern is quickly adjusted from a fine mist to a solid stream by turning the barrel. The quick acting trigger shut-off is latched in an open position by squeezing the hand and is released at a touch of the finger. Constructed of aluminum, stainless steel and brass for a long life. Assortment of nozzle discs included when you purchase the gun.

Features

  • Construction: Aluminum, stainless steel and brass
  • Max flow: 48 gpm
  • Max pressure: 800 psi
  • Inlet: Female GHT
  • Disc size: 5, 6, 7, 8, 10, 12, 14 and 16 included with gun
  • Weight: 7 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Gasket
    • Ref No: 1
    • Part No: 17236
    • Qty Req: 1
    Our price: $2.71 List price: $2.85
  • Nozzle Cap (15481)
    • Ref No: 2
    • Part No: 1234994
    • Qty Req: 1
    Our price: $8.30 List price: $8.76
  • Disc #12
    • Ref No: 3
    • Part No: 15708
    • Qty Req: 1
    Our price: $3.56 List price: $3.75
  • Disc #8
    • Ref No: 4
    • Part No: 14812
    • Qty Req: 1
    Our price: $3.56 List price: $3.75
  • Disc #10
    • Ref No: 5
    • Part No: 14813
    • Qty Req: 1
    Our price: $3.56 List price: $3.75
  • Disc #14
    • Ref No: 6
    • Part No: 15720
    • Qty Req: 1
    Our price: $5.46 List price: $5.75
  • Disc #16
    • Ref No: 7
    • Part No: 14195
    • Qty Req: 1
    Our price: $3.56 List price: $3.75
  • Disc #5
    • Ref No: 8
    • Part No: 14191
    • Qty Req: 1
    Our price: $2.52 List price: $2.65
  • Disc #6
    • Ref No: 9
    • Part No: 15066
    • Qty Req: 1
    Our price: $2.52 List price: $2.65
  • Disc #7
    • Ref No: 10
    • Part No: 14192
    • Qty Req: 1
    Our price: $3.56 List price: $3.75
  • Valve Whirl
    • Ref No: 11
    • Part No: 15480
    • Qty Req: 1
    Our price: $19.00 List price: $20.00
  • Gasket Nozzle
    • Ref No: 12
    • Part No: 15528
    • Qty Req: 1
    Our price: $2.37 List price: $2.49
  • Stream Straightener
    • Ref No: 13
    • Part No: 15477
    • Qty Req: 1
    Our price: $14.96 List price: $15.75
  • Roll Pin
    • Ref No: 14
    • Part No: 1101336
    • Qty Req: 1
    Our price: $2.37 List price: $2.49
  • Valve Stem
    • Ref No: 15
    • Part No: 15475
    • Qty Req: 1
    Our price: $19.00 List price: $20.00
  • Body
    • Ref No: 16
    • Part No: 24967
    • Qty Req: 1
    Our price: $33.25 List price: $35.00
  • O-Ring
    • Ref No: 17 & 41
    • Part No: 320183
    • Qty Req: 1
    Our price: $2.37 List price: $2.49
  • Packing
    • Ref No: 18
    • Part No: 15621
    • Qty Req: 1
    Our price: $5.03 List price: $5.38
  • Packing Nut
    • Ref No: 19
    • Part No: 24996
    • Qty Req: 1
    Our price: $8.55 List price: $9.00
  • Cam Nut
    • Ref No: 20
    • Part No: 27549
    • Qty Req: 1
    Our price: $9.26 List price: $9.75
  • Outer Tube Assembly
    • Ref No: 22
    • Part No: 15479
    • Qty Req: 1
    Our price: $65.08 List price: $68.50
  • Valve Body
    • Ref No: 23
    • Part No: 16591
    • Qty Req: 1
    Our price: $21.85 List price: $23.00
  • Gun Barrel
    • Ref No: 24
    • Part No: 24994
    • Qty Req: 1
    Our price: $40.85 List price: $43.00
  • Cam Barrel
    • Ref No: 25
    • Part No: 5263341
    • Qty Req: 1
    Our price: $83.13 List price: $87.50
  • Collar
    • Ref No: 26
    • Part No: 24993
    • Qty Req: 1
    Our price: $14.96 List price: $15.75
  • Set Screw
    • Ref No: 27
    • Part No: 1177890
    • Qty Req: 2
    Our price: $2.38 List price: $2.50
  • Grip and Seat Assembly (Contains 29-30)
    • Ref No: 28
    • Part No: 5253177
    • Qty Req: 1
    Our price: $188.39 List price: $198.30
  • S.S. Valve Seat
    • Ref No: 30
    • Part No: 15467
    • Qty Req: 1
    Our price: $13.30 List price: $14.00
  • Trigger
    • Ref No: 31
    • Part No: 5253253
    • Qty Req: 1
    Our price: $23.70 List price: $24.95
  • Latch Trigger
    • Ref No: 32
    • Part No: 24988
    • Qty Req: 1
    Our price: $9.74 List price: $10.25
  • Spring
    • Ref No: 33
    • Part No: 24992
    • Qty Req: 1
    Our price: $2.37 List price: $2.49
  • Roll Pin
    • Ref No: 34
    • Part No: 1101104
    • Qty Req: 2
    Our price: $2.37 List price: $2.49
  • Stem
    • Ref No: 35
    • Part No: 20113
    • Qty Req: 1
    Our price: $7.60 List price: $8.00
  • Packing Ring
    • Ref No: 36
    • Part No: 20115
    • Qty Req: 2
    Our price: $4.59 List price: $4.59
  • Valve Rod Gland
    • Ref No: 37
    • Part No: 20114
    • Qty Req: 1
    Our price: $14.25 List price: $15.00
  • Bearing
    • Ref No: 38
    • Part No: 20116
    • Qty Req: 1
    Our price: $2.85 List price: $3.00
  • Ball 13/16
    • Ref No: 39
    • Part No: 1187040
    • Qty Req: 1
    Our price: $7.60 List price: $8.00
  • Valve Spring
    • Ref No: 40
    • Part No: 15468
    • Qty Req: 1
    Our price: $3.09 List price: $3.25
  • Valve Cap
    • Ref No: 42
    • Part No: 25011
    • Qty Req: 1
    Our price: $19.24 List price: $20.25
  • Set Screw
    • Ref No: 43
    • Part No: 1277491
    • Qty Req: 1
    Our price: $2.37 List price: $2.49
  • Bushing
    • Ref No: 44
    • Part No: 5253192
    • Qty Req: 1
    Our price: $16.63 List price: $17.50
  • Gasket
    • Ref No: 45
    • Part No: 22679
    • Qty Req: 1
    Our price: $2.37 List price: $2.49
