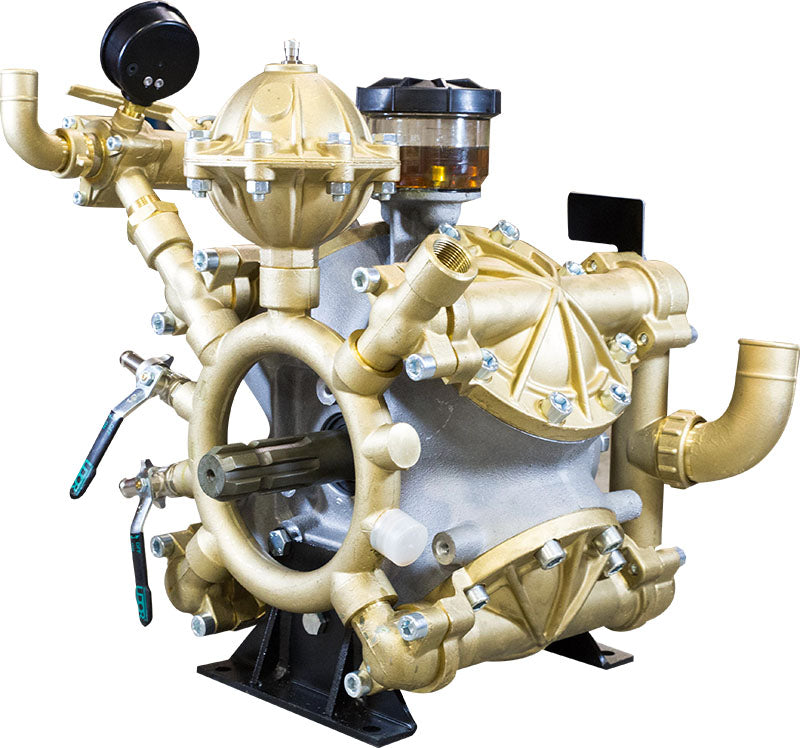

Udor BETA-150/CC Diaphragm Pump **Replaced by BETA-170/CC**

Udor BETA-150/CC Diaphragm Pump **Replaced by BETA-170/CC**

Brand:
Udor
Weight:
130.0 lb
Item #
BETA150CC
Skip to product information
1 of 1

Udor BETA-150/CC Diaphragm Pump **Replaced by BETA-170/CC**

Udor BETA-150/CC Diaphragm Pump **Replaced by BETA-170/CC**

Brand:
Udor
Weight:
130.0 lb
Item #
BETA150CC

Regular price $3,360.28
Sale price $3,360.28 Regular price List Price: $6,109.60

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 10,081 points with this purchase.

View full details

Collapsible content

Product Overview

**Replaced by BETA-170/CC**

From Udor, this Beta-150/CC diaphragm pump can handle up to 42 GPM and 700 PSI. It also is made of durable materials, which include brass and stainless steel. Heads, manifolds, connecting rods and mounting rails are all made to last and stand up to even the heaviest use. The unit also features a dual 1-3/8" six spline male PTO shaft. This is a four-diaphragm pump that has a control unit with an adjustable pressure regulator and pulsation dampener.

Manufacturer description

BETA-150/CC high pressure, high volume diaphragm pumps are excellent for various horticultural and agricultural spraying applications. Simplicity of design and common parts allow easy and affordable maintenance. UDOR BETA Series Pumps Have Brass Heads, Stainless Steel And Brass Manifolds, Steel Connecting Rods, Mounting Rails And A Dual 1-3/8" Six Spline Male Shaft. Four diaphragm pump with pulsation dampener & control unit with adjustable pressure regulator, manual dump lever, dual ball valve outlets & pressure gauge. Features: Can Be Run Dry. Visual Oil Sight Gauges. Self-Priming Operation. Stainless Steel Check Valves. Large Capacity Oil Bath Crank Cases With Drain Plugs for Ease of Maintenance. Compatible with Most Fluids, Including: Liquid Fertilizers, Abrasive Materials, Suspension Products, Pesticides, De-Icing Materials and Other Hard To Handle Fluids. Adapt Easily To PTO, Gas Engine, Hydraulic And Belt Drive Applications. Maximum Fluid Temperature, 140° F. Custom Pumps Available To 200° F. Largest Selection of Flows, Pressures and Drive Options Available. Over 50 Years Of Diaphragm Pump Experience. One Piece Stainless Steel Diaphragm Bolts. Heavy Duty Pre-Formed Urethane Diaphragms.

Features

  • Max flow: 42 gpm
  • Max pressure: 700 psi
  • Includes 6005.15 control unit and dual 1-3/8" 6-spline male PTO shafts
  • Port sizes: 1-1/2" HB inlet, (2) 1/2" HB shutoffs 3/4" MNPT and 3/4" FNPT outlets, 1" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 4, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Heads: Brass
  • Manifolds: Brass and stainless steel
  • Max fluid temperature: 140°F
  • Weight: 130 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Retainer Ring (BETA-150, OMEGA-140, OMEGA-170)
    • Ref No: 1
    • Part No: 000101
    • Qty Req: 2
    Our price: $73.46 List price: $88.50
  • Crankcase
    • Ref No: 43
    • Part No: 000229
    • Qty Req: 1
    Our price: $603.74 List price: $727.40
  • Accumulator Body
    • Ref No: 78
    • Part No: 000310
    • Qty Req: 1
    Our price: $243.85 List price: $293.80
  • Seal
    • Ref No: 156
    • Part No: 000702
    • Qty Req: 2
    Our price: $18.27 List price: $22.01
  • Diaphragm Bolt (BETA-150/200/240, OMEGA-140/170, RO-70/160/210/250/320)
    • Ref No: 238
    • Part No: 0010203
    • Qty Req: 4
    Our price: $18.59 List price: $22.40
  • 1/2" Hose Barb
    • Ref No: 358
    • Part No: 020219
    • Qty Req: 2
    Our price: $10.29 List price: $12.40
  • Hose Barb Elbow (BETA-150/200/240)
    • Ref No: 378
    • Part No: 020284
    • Qty Req: 1
    Our price: $88.23 List price: $106.30
  • Piston Sleeve (BETA-150/240, OMEGA-140/170)
    • Ref No: 48
    • Part No: 020612
    • Qty Req: 4
    Our price: $190.24 List price: $229.20
  • Accumulator Head
    • Ref No: 558
    • Part No: 020821
    • Qty Req: 1
    Our price: $227.09 List price: $273.60
  • Oil Cap
    • Ref No: 559
    • Part No: 020822
    • Qty Req: 1
    Our price: $16.52 List price: $19.90
  • Pump Body (BETA-150, OMEGA-170)
    • Ref No: 61
    • Part No: 020917
    • Qty Req: 1
    Our price: $1,635.68 List price: $1,970.70
  • Bearing (BETA-150/200/240, OMEGA-140/170)
    • Ref No: 705
    • Part No: 021411
    • Qty Req: 2
    Our price: $401.06 List price: $483.20
  • Needle Bearing (BETA-150, OMEGA-140/170)
    • Ref No: 736
    • Part No: 021602
    • Qty Req: 1
    Our price: $531.20 List price: $640.00
  • Spacer (BETA-150/200/240, RO-320, OMEGA-140/170)
    • Ref No: 786
    • Part No: 0030102
    • Qty Req: 2
    Our price: $127.07 List price: $153.10
  • Diaphragm Washer
    • Ref No: 787
    • Part No: 030103
    • Qty Req: 4
    Our price: $13.61 List price: $16.40
  • Nut
    • Ref No: 845
    • Part No: 030301
    • Qty Req: 8
    Our price: $1.91 List price: $2.30
  • Flange (BETA-150/200/240, OMEGA-140/170, RO-320)
    • Ref No: 902
    • Part No: 0050146
    • Qty Req: 1
    Our price: $308.59 List price: $371.80
  • Gasket
    • Ref No: 974
    • Part No: 060201
    • Qty Req: 1
    Our price: $8.38 List price: $10.10
  • Barb Nut
    • Ref No: 1034
    • Part No: 060409
    • Qty Req: 2
    Our price: $9.55 List price: $11.50
  • Barb Nut
    • Ref No: 1036
    • Part No: 060448
    • Qty Req: 1
    Our price: $67.81 List price: $81.70
  • Gasket
    • Ref No: 1071
    • Part No: 060505
    • Qty Req: 2
    Our price: $1.83 List price: $2.20
  • Aluminum Gasket
    • Ref No: 1072
    • Part No: 060509
    • Qty Req: 1
    Our price: $1.74 List price: $2.10
  • Air Valve Assembly
    • Ref No: 11
    • Part No: 060816
    • Qty Req: 1
    Our price: $20.50 List price: $24.70
  • Piston Diaphragm Buna (Optional)
    • Ref No: 1290
    • Part No: 090301
    • Qty Req: 4
    Our price: $40.26 List price: $48.50
  • Accumulator Diaphragm
    • Ref No: 1301
    • Part No: 090316
    • Qty Req: 1
    Our price: $40.92 List price: $49.30
  • O-Ring
    • Ref No: 1365
    • Part No: 110101
    • Qty Req: 8
    Our price: $4.15 List price: $5.00
  • O-Ring
    • Ref No: 1368
    • Part No: 110104
    • Qty Req: 8
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1379
    • Part No: 110131
    • Qty Req: 16
    Our price: $2.57 List price: $3.10
  • O-Ring
    • Ref No: 1381
    • Part No: 110127
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • O-Ring
    • Ref No: 1385
    • Part No: 110132
    • Qty Req: 1
    Our price: $6.97 List price: $8.40
  • O-Ring
    • Ref No: 1386
    • Part No: 110133
    • Qty Req: 1
    Our price: $5.56 List price: $6.70
  • O-Ring
    • Ref No: 1398
    • Part No: 110142
    • Qty Req: 1
    Our price: $2.82 List price: $3.40
  • Base Plate
    • Ref No: 1451
    • Part No: 120214
    • Qty Req: 2
    Our price: $61.34 List price: $73.90
  • Oil Reservoir
    • Ref No: 1492
    • Part No: 120330
    • Qty Req: 1
    Our price: $49.97 List price: $60.20
  • Elbow
    • Ref No: 1505
    • Part No: 120345
    • Qty Req: 2
    Our price: $144.92 List price: $174.60
  • Elbow
    • Ref No: 1506
    • Part No: 120346
    • Qty Req: 2
    Our price: $126.33 List price: $152.20
  • Suction Elbow
    • Ref No: 1507
    • Part No: 120354
    • Qty Req: 1
    Our price: $145.91 List price: $175.80
  • Piston
    • Ref No: 1571
    • Part No: 120508
    • Qty Req: 4
    Our price: $107.90 List price: $130.00
  • Valve Assembly
    • Ref No: 1709
    • Part No: 600608
    • Qty Req: 8
    Our price: $42.08 List price: $50.70
  • Oil Reservoir Assembly
    • Ref No: 1741
    • Part No: 603302
    • Qty Req: 1
    Our price: $84.49 List price: $101.80
  • Piston/Rod Assembly
    • Ref No: 1778
    • Part No: 601501
    • Qty Req: 4
    Our price: $240.04 List price: $289.20
  • 6031.02 Pulsation Dampener
    • Ref No: 1804
    • Part No: 603102
    • Qty Req: 1
    Our price: $401.28 List price: $549.70
  • Washer
    • Ref No: 18
    • Part No: 140309
    • Qty Req: 4
    Our price: $1.33 List price: $1.60
  • Washer
    • Ref No: 1845
    • Part No: 140310
    • Qty Req: 3
    Our price: $0.94 List price: $1.13
  • Connecting Rod Pin
    • Ref No: 1962
    • Part No: 150201
    • Qty Req: 4
    Our price: $22.00 List price: $26.50
  • Snap Ring
    • Ref No: 2046
    • Part No: 150602
    • Qty Req: 8
    Our price: $1.91 List price: $2.30
  • Snap Ring
    • Ref No: 2052
    • Part No: 150616
    • Qty Req: 1
    Our price: $4.90 List price: $5.90
  • Piston Ring
    • Ref No: 2111
    • Part No: 150905
    • Qty Req: 4
    Our price: $16.85 List price: $20.30
  • Connecting Rod
    • Ref No: 2138
    • Part No: 151903
    • Qty Req: 4
    Our price: $87.15 List price: $105.00
  • Suction Tube
    • Ref No: 2182
    • Part No: 160127
    • Qty Req: 3
    Our price: $45.48 List price: $54.80
  • Suction Tube
    • Ref No: 2229
    • Part No: 160230
    • Qty Req: 1
    Our price: $98.77 List price: $119.00
  • Oil Plug
    • Ref No: 2251
    • Part No: 160302
    • Qty Req: 1
    Our price: $8.47 List price: $10.20
  • Plug
    • Ref No: 2277
    • Part No: 160334
    • Qty Req: 1
    Our price: $4.57 List price: $5.50
  • Head
    • Ref No: 2329
    • Part No: 160454
    • Qty Req: 4
    Our price: $523.56 List price: $630.80
  • Discharge Manifold
    • Ref No: 2361
    • Part No: 160522
    • Qty Req: 1
    Our price: $397.07 List price: $478.40
  • Bolt
    • Ref No: 2465
    • Part No: 180403
    • Qty Req: 10
    Our price: $2.32 List price: $2.80
  • Bolt
    • Ref No: 2466
    • Part No: 180406
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • Bolt
    • Ref No: 2473
    • Part No: 180454
    • Qty Req: 8
    Our price: $2.24 List price: $2.70
  • Bolt
    • Ref No: 2582
    • Part No: 180504
    • Qty Req: 3
    Our price: $2.49 List price: $3.00
  • Bolt
    • Ref No: 2584
    • Part No: 180506
    • Qty Req: 3
    Our price: $1.99 List price: $2.40
  • Bolt
    • Ref No: 2585
    • Part No: 180508
    • Qty Req: 32
    Our price: $3.74 List price: $4.50
  • Ball Valve-Left
    • Ref No: 5003
    • Part No: 060846
    • Qty Req: 2
    Our price: $54.53 List price: $65.70
  • Bolt
    • Ref No: 6000
    • Part No: 180507
    • Qty Req: 16
    Our price: $2.82 List price: $3.40
  • Washer
    • Ref No: 7600
    • Part No: 140336
    • Qty Req: 3
    Our price: $2.24 List price: $2.70
  • PTO Safety Shield (Optional)
    • Ref No: 7650
    • Part No: 121902
    • Qty Req: 1
    Our price: $41.83 List price: $50.40
  • Thru-Shaft Protector (Optional)
    • Ref No: 7653
    • Part No: 121915
    • Qty Req: 1
    Our price: $17.76 List price: $21.40
  • Piston Diaphragm Desmopan (Standard)
    • Ref No: 8112
    • Part No: 090333
    • Qty Req: 4
    Our price: $71.13 List price: $85.70
